We guarantee you will notice an improvement in your vehicle after it's had the Berrima Diesel treatment.
So, next time you think Diesel - Think BERRIMA DIESEL!

WHAT TO EXPECT FROM A DIESEL SERVICE

fuel4
  • A diesel service at Berrima takes a full day. The whole fuel injection system is set up so that your engine is running as it should be.
  • The injectors are removed and dismantled, then tested, repaired as necessary, then reassembled.
  • The pump timing, fuel loading, aneroid operation and turbo operation(where applicable) are adjusted to give the best possible performance. All within factory specs.
  • You can expect cleaner running and better performance from your vehicle after it's had the Berrima Diesel treatment.
  • The tappets are adjusted where needed.
  • You will notice improved fuel economy with a properly set up vehicle and you will get extended engine life.
  • The vehicle filter systems are checked. We can advise you on the best system for your individual needs.
  • All vehicles are fine tuned during extensive road testing, Your vehicle is fine tuned for its best performance potential under REAL LIFE conditions. That's one reason why we are able to get your vehicle performing like no one else can. OPTIONAL - Further fine tuning on our state of the art ‘Rolling Road’ Dynamometer..
fuel3

Why choose us:

  • Problem vehicles are our specialty.
  • We fix the problems no one can fix.
  • Bring your vehicle to us for a full power-up tuning service.
  • Protect your engine with our range of fuel filtration products.

SPECIAL ACCESSORIES EXCLUSIVELY AVAILABLE FROM BERRIMA DIESEL INCLUDE :

  • Water Stop fuel safety device
  • Lucas/CAV custom fuel filter adaptors
  • Custom adaptors for under bonnet installation of a cyclonic air Pre-cleaner.

FUEL INJECTION SYSTEM SERVICE

Our fuel injection service for Non EFI includes:

  • Injector servicing (overhauling and specialised re-seating of needles OR new nozzles including fine hand lapping)
  • Valve clearances (ONLY For 4.2 patrols)
  • Filter inspection, Fuel line flow rate and condition , Cold start system inspection and testing
  • Pump settings (fuel loadings, transfer pressure, timing etc)
  • Turbo inspection of condition and operation (if applicable)

Includes FINAL TESTING AND SPECIALISED FINE TUNE

Our EFI Fuel Service Includes:

  • Injector servicing (overhauling and specialised re-seating of needles OR new nozzles including fine hand lapping)
  • Valve clearances (IF Applicable)
  • Filter inspection, Fuel line flow rate and condition, Cold start system inspection and testing
  • Inspect and test various engine management sensors such as air-mass flow sensor
  • Check ECU fault code data, Inspect emission control system, Pump settings (transfer pressure, timing etc)
  • Turbo inspection of condition and operation (if applicable)

Includes FINAL ROAD TEST/ DYNO TEST AND SPECIALISED FINE TUNE

EFI Pump and Common-Rail systems

  • Inspect injector pulse
  • Valve clearances (if applicable)
  • Filter inspection, Fuel line flow rate and condition , Cold start system inspection and testing
  • Inspect and test various engine management sensors such as air-mass flow sensor
  • Check ECU fault code data
  • Inspect emission control system
  • Inspect Pump settings like transfer pressure, timing etc (for EFI pumps only)
  • Inspect Fuel Rail operating pressures (for Common Rail only)
  • Turbo inspection of condition and operation
  • Perform ‘Live’ test for all available information via Diagnostic Management Tester

Includes FINAL TESTING AND SPECIALISED FINE TUNE

FUEL INJECTION PERFORMANCE TUNE

fuel5
  • Injector spray patterns are set by hand, using the 'Old School' technique, to a level that burns our poor quality Australian diesel.
  • Pressures are set to the maximum specification and are equal across the set of injectors. Haphazard settings are NOT accepted here. Taking the time to achieve these precision settings is what sets us ahead of the rest.
  • Fuel lines and strainers are inspected and cleaned.
  • Valve clearances are adjusted and set on ONLY 4.2 patrols.
  • If the vehicle has a turbo, we check its operation and set this to match the rest of the system.
  • Once this procedure is complete the vehicle is subjected to extensive testing and tuning. This is where we come into our own. Traffic in major cities means it is virtually impossible to road test a vehicle properly. Luckily we are based in a rural location and have around 5kms of on road test track (The Old Hume Highway) right outside our door. Also, with our ‘rolling road’ dynamometer we are able to accurately simulate road conditions and we use this to extensively test all vehicles that come into our workshop for tuning.

FUEL PUMP REPAIRS AND SERVICING

BAD FUEL:

Poor fuel is an ever increasing problem in this country. If you're doing a lot of travelling and buying fuel from lots of different suppliers you never know what you'll get.

A number of problems are common due to poor fuel quality such as:
BLOCKED OR DAMAGED INJECTORS
fuel1

Poorly set up, blocked or damaged fuel injectors result in poor vaporisation of the fuel which leads to poor combustion which leads to fuel wastage and engine damage.

Your injectors are the heart of your engine. Without the correct spray pattern the diesel will not burn properly and your vehicle will under perform.

It is important to have your injectors serviced correctly or else everything you do after that will be just trying to correct this basic problem.

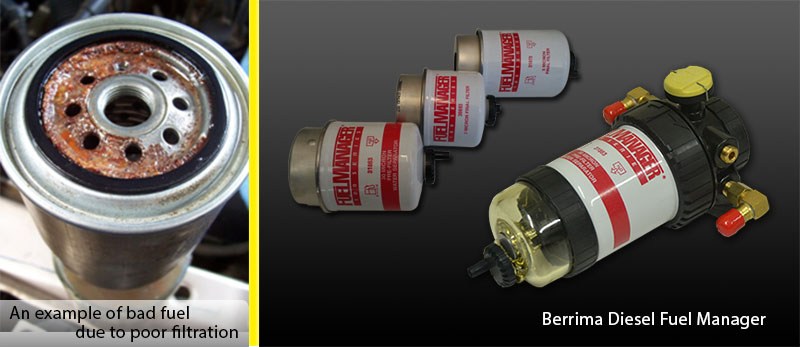

POOR FILTRATION AND ENGINE DAMAGE
fuel1

The Berrima Diesel adaptor ring is simply screwed into place on the standard filter head and then the Lucas/CAV element is simply pushed on.

A threaded rod on the adaptor is used to retain a glass bowl at the base of the filter, allowing the owner to check for the presence of water or other fuel contamination. As we say, "You can't see through the original steel filter!"

The bowl can be drained by simply turning a wing nut at the bottom of the bowl.

The advantages of the Lucas/CAV filter element compared with original or other after-market filters include a much lower price (around $8 instead of up to $90) and availability virtually anywhere in Australia.

Although originally a Lucas/CAV design, the element can also be replaced with similar units such as those produced by Fleetguard, Bosch or Framm.

POORLY SET UP OR LEAKING FUEL PUMPS

Due to increasingly poor fuel being available in Australia we have noticed a number of vehicles having problems with leaking injector pumps.

A number of dealerships have brought near new factory vehicles to us with these problems.

It's amazing how quickly poor fuel can damage an engine. Leaking injector pumps are one of our specialties and with some specialised techniques we have developed we have a 100% success rate in fixing the problem.
